型号: HDMI 有源光缆

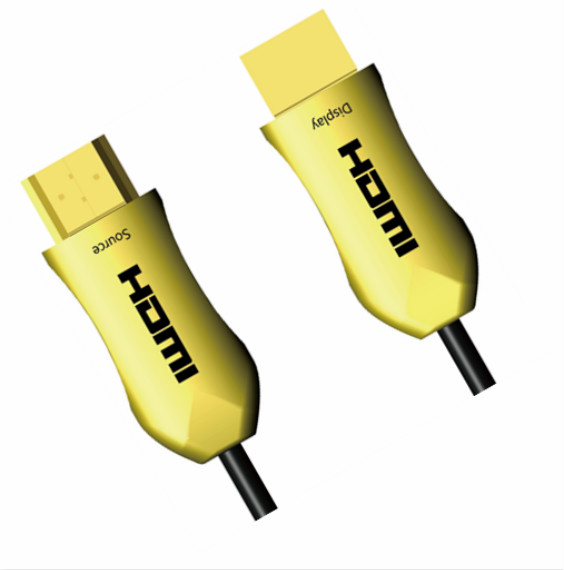

HDMI 有源光缆



Description

Our HDMI Active Hybrid Cable is the most competitive long reach HDMI interconnection solution on the market. It supports HDMI Maximum Data Rate 10.2Gbps with light weight, flexible and ultra-small long-term bending radius (52mm) hybrid cable. With our advanced optical engine embedded. This HDMI Hybrid Cable provides full HDMI signal integrity, support up to 150m maximum length, plug and play. No external power required.



Features

Up to 150m Maximum Length.

Low Power Consumption: 250mW (max).

Hot Plug and Play

Compatible with HDMI 1.4 standard.

Support HDCP 1.2

Self-detecting function for EDID information

No loss of signal delivering crystal clear digital images instantly.

Supports computer resolutions to 1080P and 4K2K(30P).

Hybrid optical cable with fiber and copper wire





Applications

Digital Signage

Home Theater

LED signboards in streets and in stadiums

Conference Room Video Equipment

Medical Imaging Equipment

TV Broadcast Station

Airplane On-board Video System

Security systems





Recommended Operating Conditions

Parameter

Symbol

Min

Typical

Max

Unit

Power Supply Voltage

VCC

4.75

5.0

5.25

V

Operating Temperature

Top

0

50

°C



Specifications

Item

Description

Units

Transmitter (Source)

Receiver (Sink)

HDCP & DDC

HDCP 1.2 Fully Support bi-directional EDID and HDCP communication

Video Bandwidth

3.4Gbps/x3Channel (max)+ Clock.

Supported

Resolution & Distance

PC: WUXGA 1920 x 1200 up to 100 metersHDTV : 480p, 720p, 1080i and 1080p deep color, 4K(30P), 3D Full HD 1920 x 1080 up to 100 meters

O/E Converter

4 channel 850 nm VCSEL array

4 CH GaAs PD array

Connector Type

HDMI type A

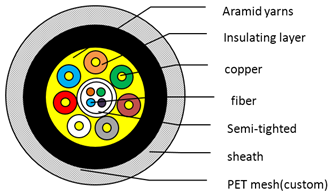

Cable Type

Hybrid type with OM3 fiber and copper wire

Cable Length

15m/20m/30m/40m/50m/60m/70m/80m/90m/100m (with +/-30cm tolerance) Custom length available.

Cable Outer Diameter

5.2mm

Jacket Outer Material

PVC/TPU(Custom)

Cable Weight  TBD

Cable Weight  TBD

Cable Color  TBD

Cable Color  TBD

Differential Input

100 ohm (typ)

Power Consumption

250mW (max)

Power Supply

Non external power required

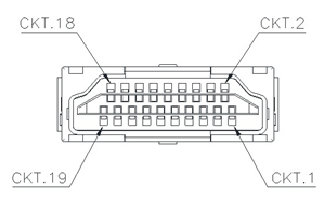

HDMI Type A Pin  Assignment





HDMI Type A Connector Pin Assignment

PIN

Function

PIN

Function

1

T.M.D.S. Data 2+

11

TMDS Clock Shield

2

T.M.D.S. Data 2 Shield

12

TMDS Clock-

3

T.M.D.S. Data 2-

13

CEC

4

T.M.D.S. Data 1+

14

Utility

5

T.M.D.S. Data 1 Shield

15

SCL

6

T.M.D.S. Data 1-

16

SDA

7

T.M.D.S. Data 0+

17

DDC/CEC Ground

8

T.M.D.S. Data 2 Shield

18

+5V Power

9

T.M.D.S. Data 0-

19

Hot Plug Detect

10

TMDS Clock+



Order Information

Product No.

Description

IPT-22011

HDMI 1.4 AOC   Length: 10 Meter

IPT -22021

HDMI 1.4 AOC   Length: 20 Meter

IPT -22031

HDMI 1.4 AOC   Length: 30 Meter

IPT -22041

HDMI 1.4 AOC   Length: 40 Meter

IPT -22051

HDMI 1.4 AOC   Length: 50 Meter

IPT -22061

HDMI 1.4 AOC   Length: 60 Meter

IPT -22071

HDMI 1.4 AOC   Length: 70 Meter

IPT -22081

HDMI 1.4 AOC   Length: 80 Meter

IPT -22091

HDMI 1.4 AOC   Length: 90 Meter

IPT -22101

HDMI 1.4 AOC   Length: 100 Meter
